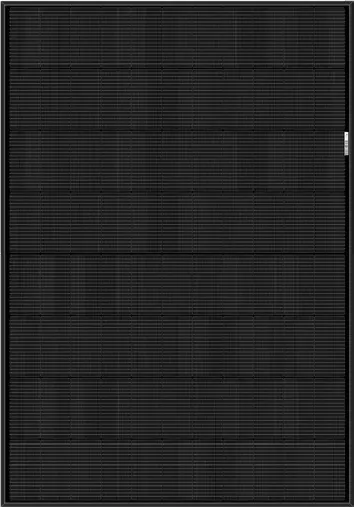

REC Alpha Pure-RX (460W) Solar Panels

High-output panels become especially interesting when the available roof area is constrained by hips, valleys, vents or shading. The REC Alpha Pure-RX is 68.0 inches long and 48.1 inches wide, so it is not interchangeable with a narrower module on a layout drawing. We test the actual dimensions against usable roof planes and required access paths. A higher wattage per panel can reduce panel count for a similar capacity, but it does not automatically guarantee that the same roof holds a larger system.

For a Florida homeowner choosing between panel options, the right question is how much useful generation the proposed layout can deliver without compromising installation quality. We consider roof condition, available sunlight and the electrical design alongside module efficiency. On metal and tile roofs, attachment and waterproofing details must suit the covering and structure. If the roof needs work first, it is better to address that before committing to a panel layout that will later need to be removed.

Solar cells warm up when exposed to sunlight, and hotter cells generally deliver less power than at the reference testing temperature. The REC sheet lists a maximum power temperature coefficient of -0.24% per degree K, equivalent to the same change per degree C. It describes the relative power change with cell temperature under comparable conditions. It should not be confused with ambient air temperature or used by itself to predict an annual energy total.

Temperature, ventilation, orientation and shading all influence the system. A strong specification cannot recover roof area in deep shade. We evaluate the whole design.

The 460W model lists a maximum power current of 8.38A, an open circuit voltage of 65.3V and a short circuit current of 8.88A at standard test conditions. Those figures matter when selecting an inverter and arranging the circuit. They are not a homeowner wiring guide: the design must also account for temperature limits, circuit protection and the manufacturer requirements of every connected component.

If you want storage, the REC panel does not need to share a brand name with the battery. We assess the appropriate inverter or AC-coupled configuration and confirm how the system will operate during grid interruptions. Panels alone do not provide household outage backup. A battery proposal should explain usable storage, supported loads and controls separately from the array capacity. This separation makes it easier to compare a panel-only project with a solar-plus-Powerwall design.

The supplied REC documents distinguish product, power and labor coverage. Standard coverage gives 20 years for the product and 25 years for power, without labor. ProTrust changes product and labor benefits when its requirements are satisfied. The labor term depends on system size, and registration is part of the qualification process. A statement such as full warranty coverage is therefore incomplete unless it identifies which coverage applies to your project.

The power schedule specifies 98% in the first year and a 0.25% annual degradation allowance thereafter, reaching 92% at year 25. That threshold is not a guarantee of a particular electricity bill. Coastal Energy installation workmanship and leak coverage is separate, lasting five years from activation and transferable under its written terms. Neither that installation warranty nor REC product coverage should be presented as automatic protection for every maintenance need or storm-related event.
